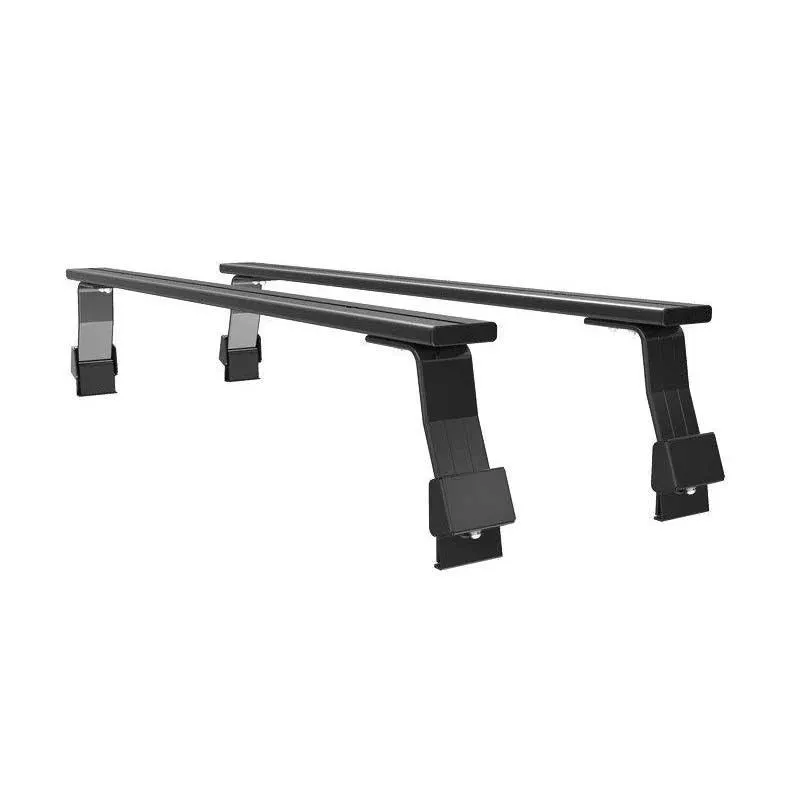

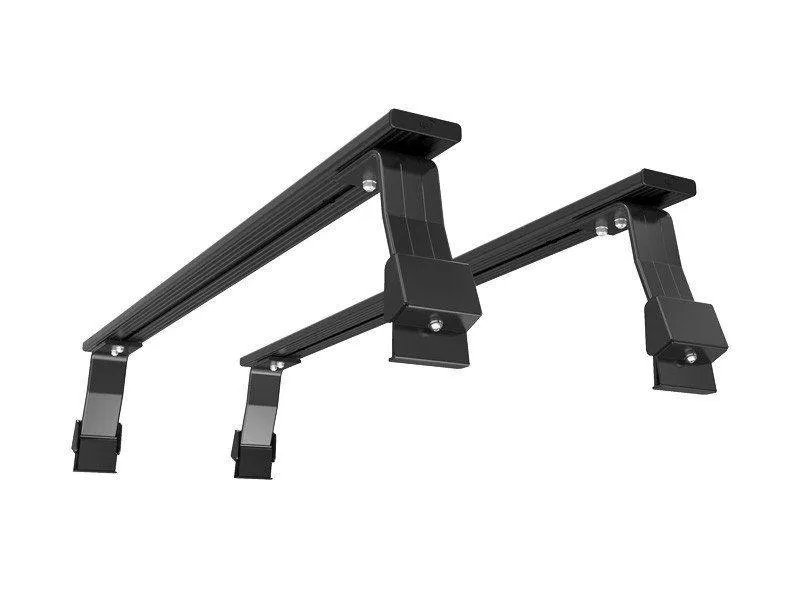

Load Bar Kit / Gutter Mount For Land Rover Range Rover (1970-1996) - by Front Runner Outfitters

If you own a Land Rover Range Rover from 1970 to 1996 and don't want to buy a full roof rack, or are having trouble finding one, then a load bar kit or gutter mount can be an excellent choice.

Much more affordable, yet strong enough to carry most of the things you'll need during a camping trip or for an every day use.

This low profile, smaller footprint solution includes 4 130mm Gutter Mount legs, 2 1475mm Load Bars, 1 10mm Roof Load Bar Wind Deflector and fitting instructions - all the components necessary to mount the Front Runner Load Bars to a vehicle with gutters.

These will still allow you to easily carry off-road related items, such as kayaks, bicycles, cargo, and even

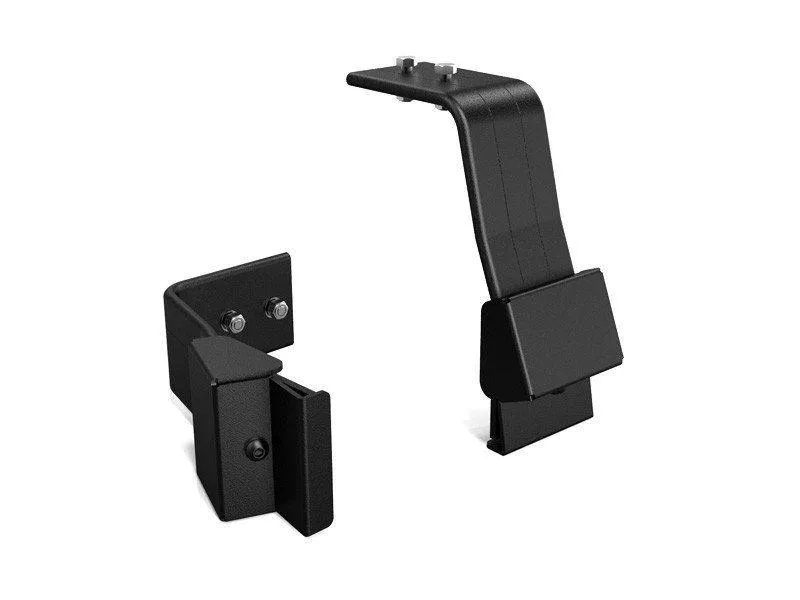

The Load Bars are mounted directly to the rain gutters using Gutter Mounted Legs.

Uses the same strong, corrosion free aluminum slats found in Front Runner Slimline II Racks.

The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.

The Load Bars and Gutter Mount Legs can be used in the future as components to build a complete Front Runner Roof Rack.

Made from stainless steel and a durable, weather resistant black powder-coated aluminum.

Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle.

FREE Shipping!

The Load Bars Consist Of:

• 2 x LASS102 - No 2 Leg 130mm (Pair) - by Front Runner

• 1 x LBSK017 - Roof Load Bar Pair 1475mm(W) - by Front Runner

• 1 x WDLB001 - Load Bar Wind Deflector / 10mm - by Front Runner

Materials Used:

• Black epoxy powder-coated T6 aluminium
• 3CR12 Stainless Steel

Dimensions Of Load Bars:

• Width 115mm (5")
• Length 1455mm (57")
• Height 180mm (7")
• Approximate Installed Weight 7kg (16lbs)

How To Install Them:

• The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
• To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
• If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.
• If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
